Garden Boxes

WOODWORKING

Many soil bags later...

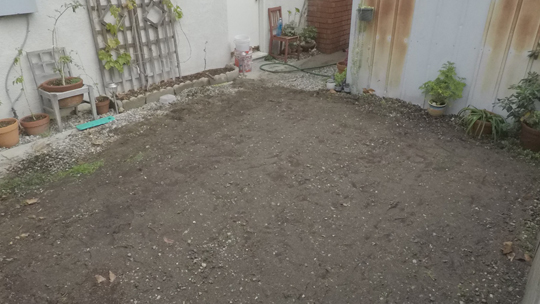

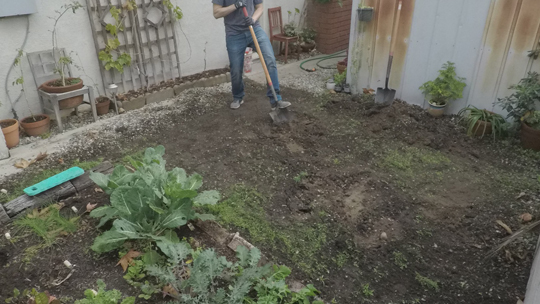

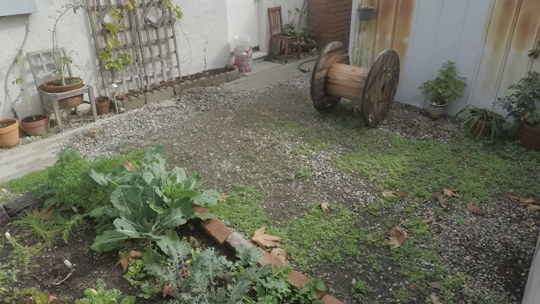

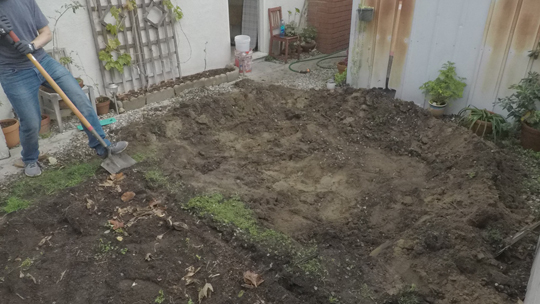

The sites were cleared of gravel, the dirt was broken up, leveled, and then compacted.

I. SITE MEASURMENT

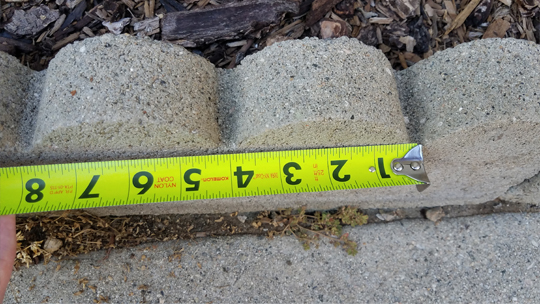

The vast majority of the measuring was done with a measuring tape. Some photos were taken for 3d projection and documentation of the overall garden box process.

II. CONCEPT DESIGN

The wood type is Red Cedar, chosen for it's rot resistant properties.

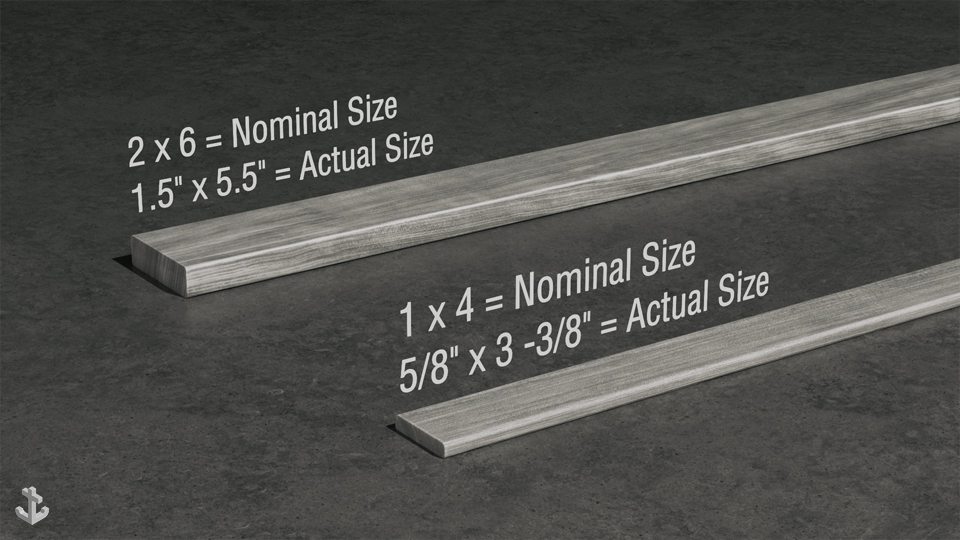

Two different dimensional lumbers were implemented in the design and build:
2 x 6 - for backer, tie, and corner posts
1 x 4 - for siding and top rail

Once I had the cedar boards modeled and uv'd, I duplicated around and varied wood lengths until I found the following two designs:

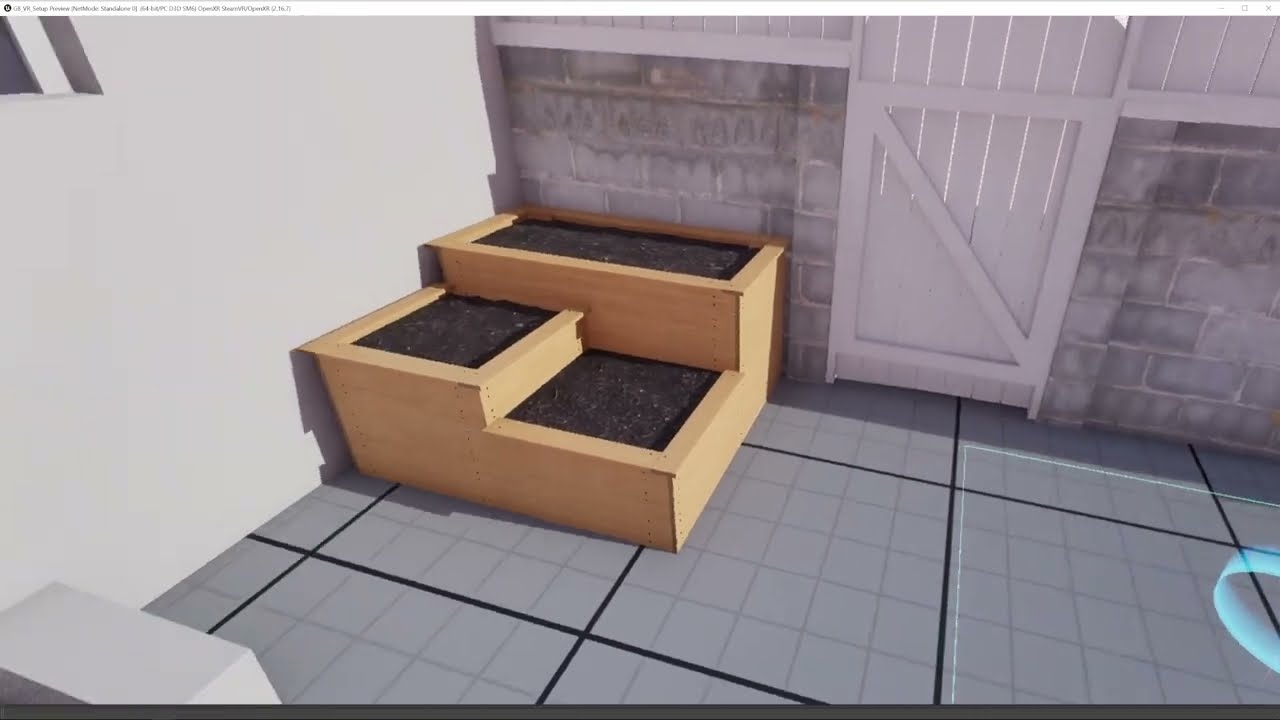

Throughout the concepting phase, 3D models were exported to Unreal Engine to check the garden boxes for scale in Virtual Reality using the 3 models:

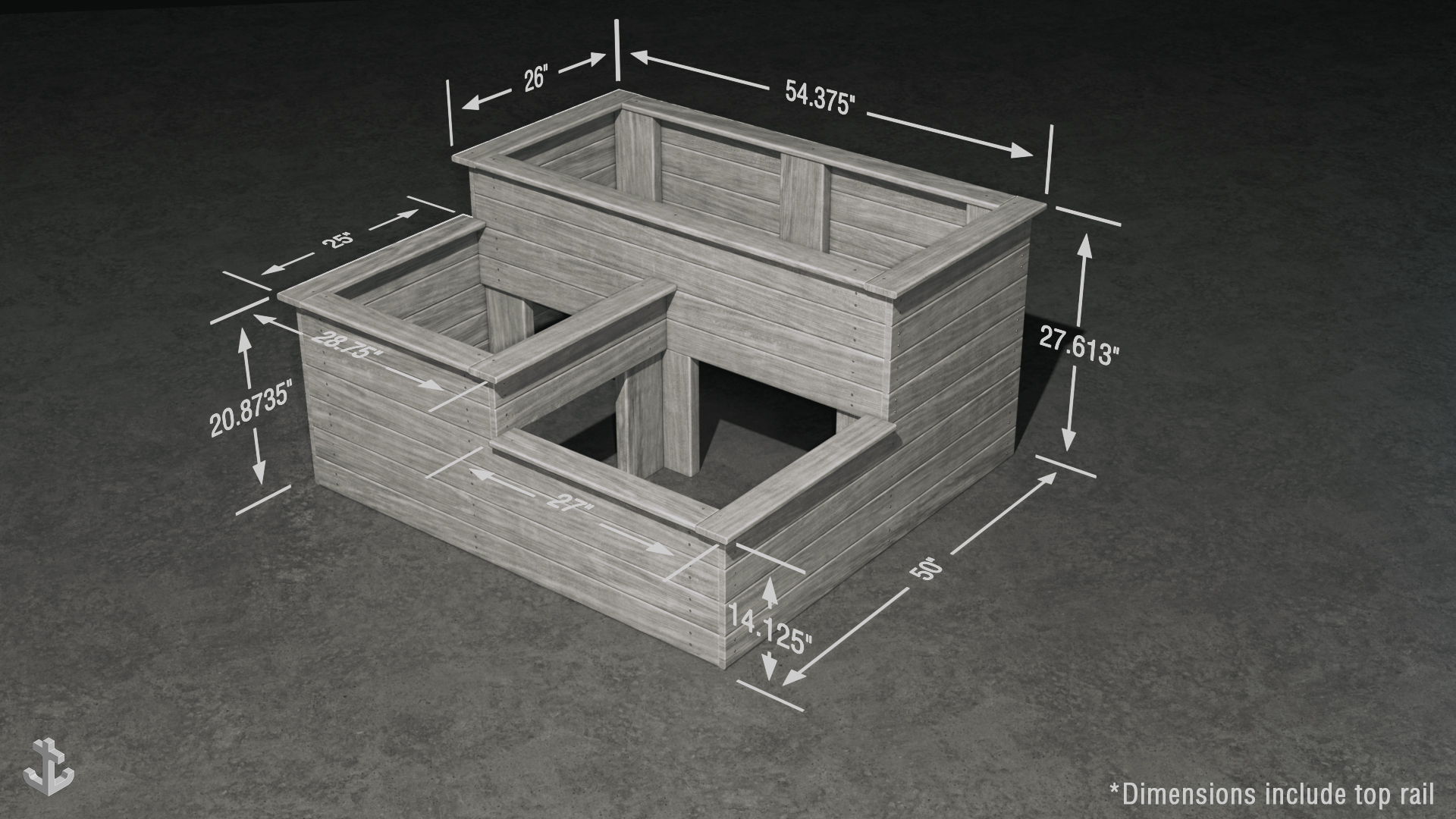

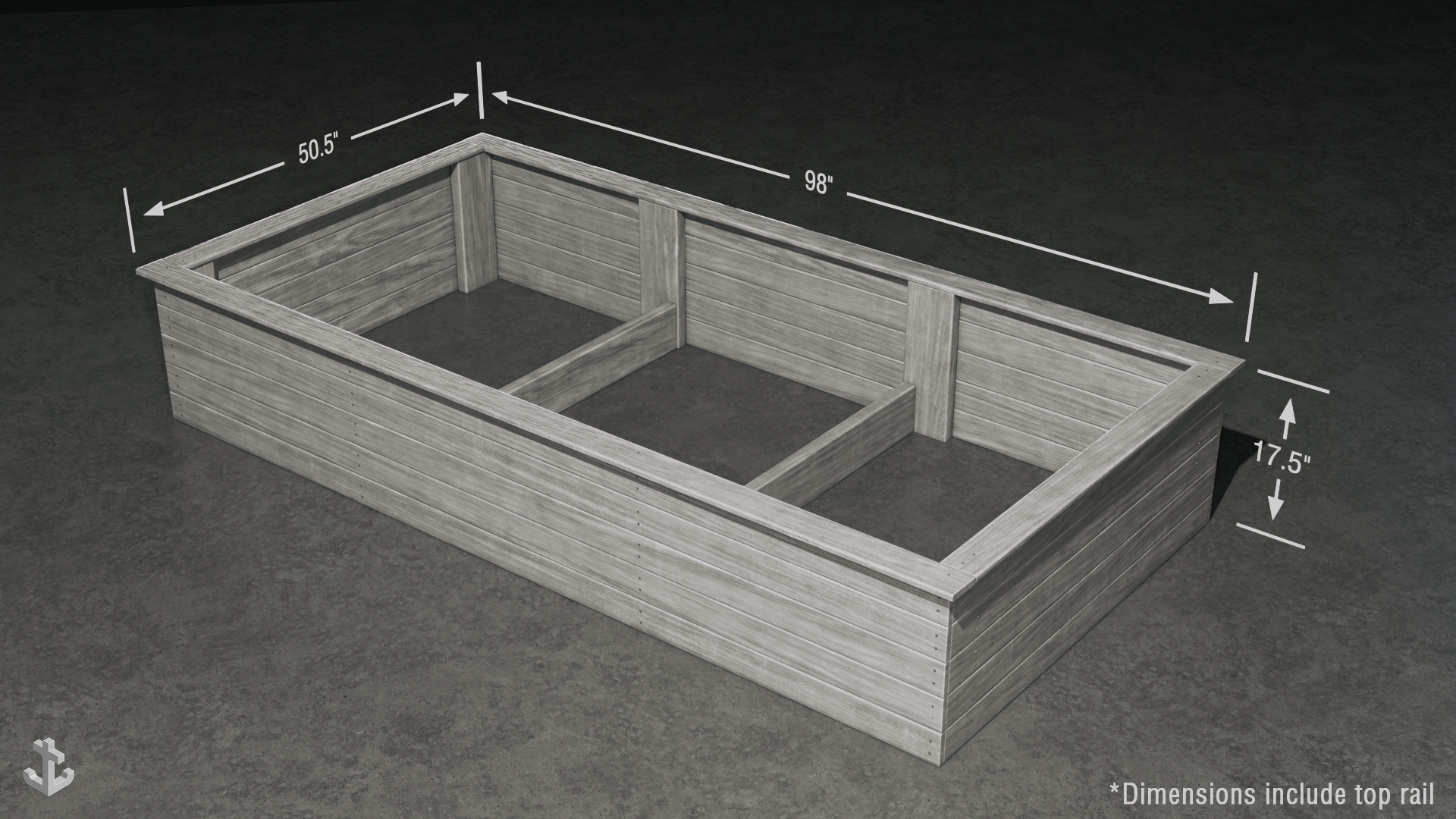

The final dimensions of the two box designs:

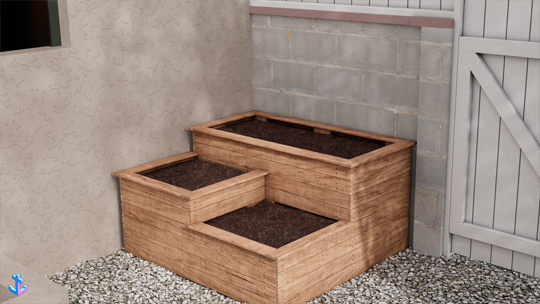

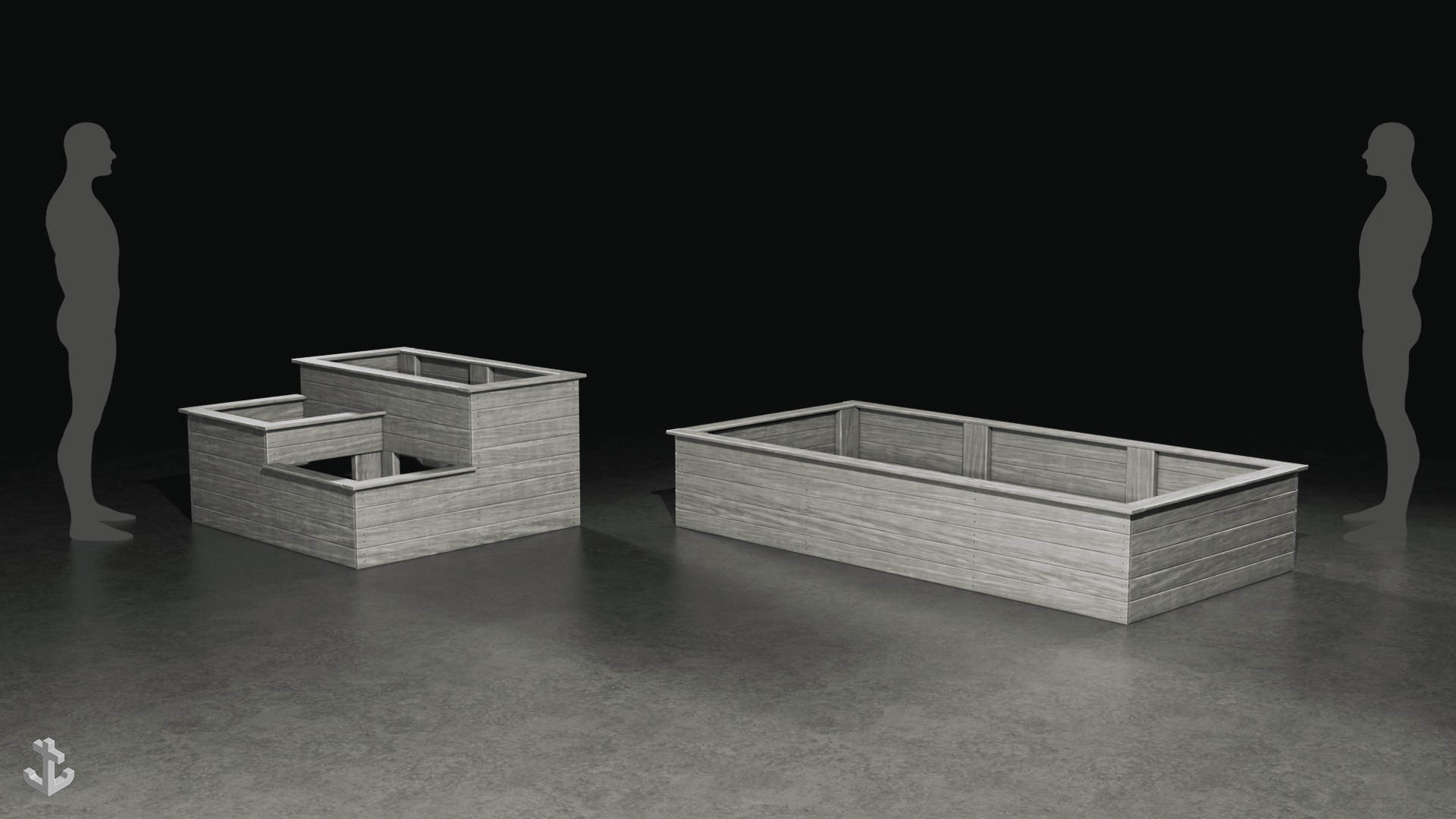

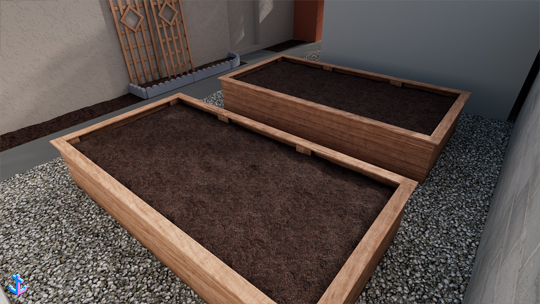

Final 3D Renders before construction:

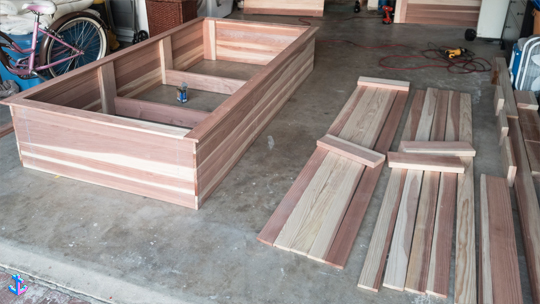

III. FABRICATION & ASSEMBLY

IV. SITE PREPARATION & POSITIONING

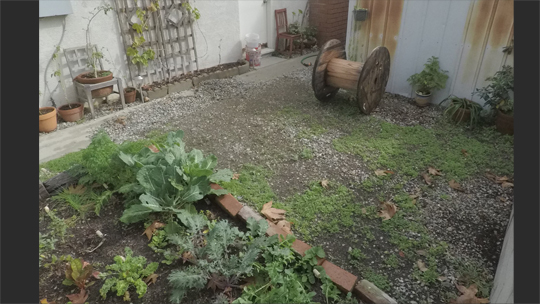

area A

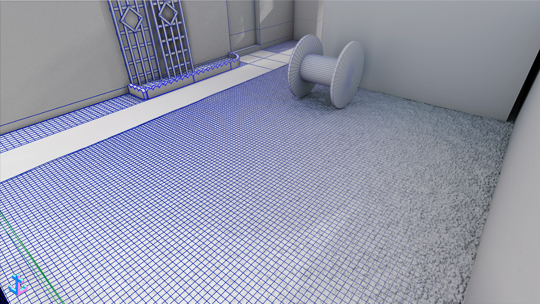

area A - 3d model

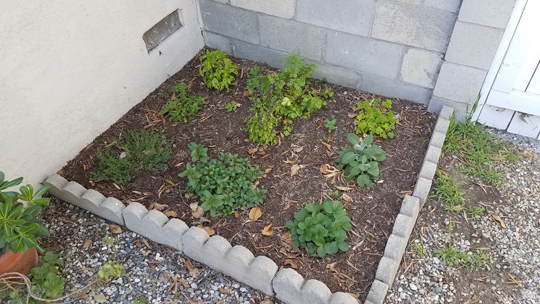

area b

area B - 3d model

I had built some garden boxes and this page goes over the process I took in doing so.

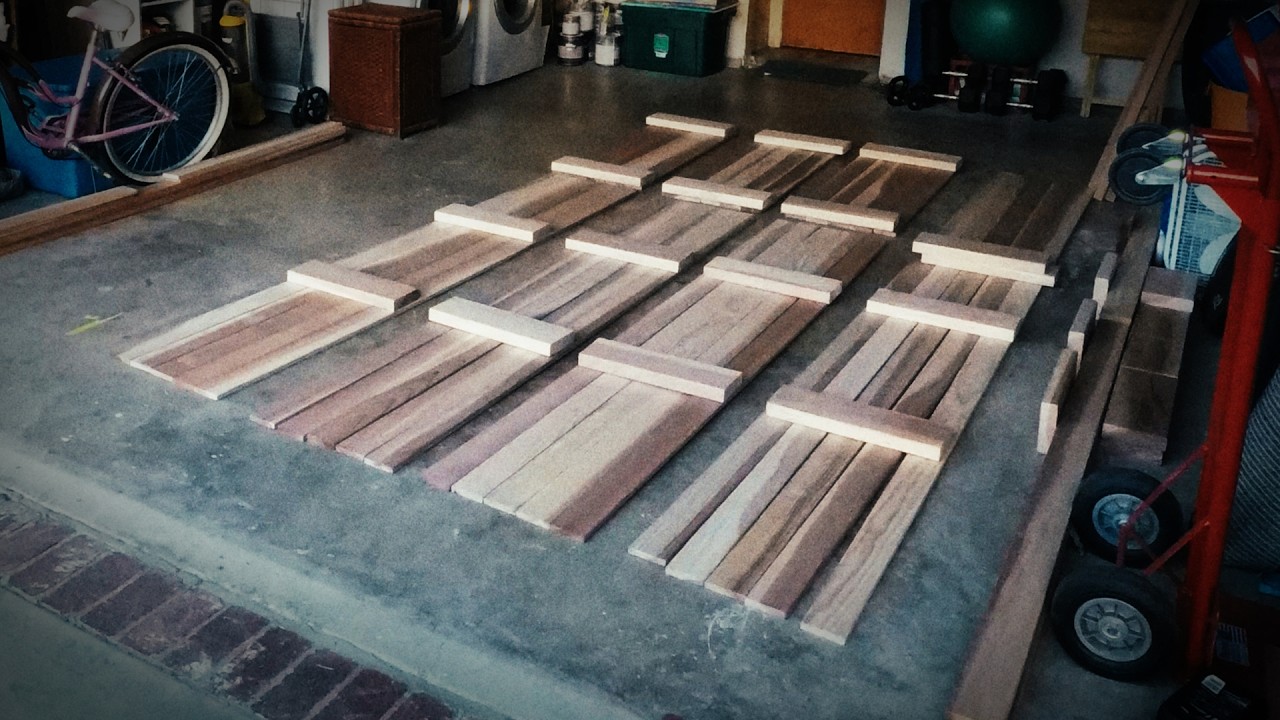

Cut and prep - half day

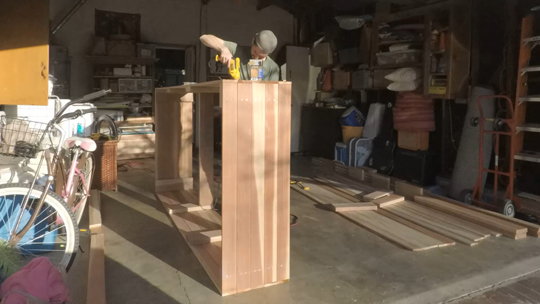

Assembly - 2 Days

V. THE GARDEN

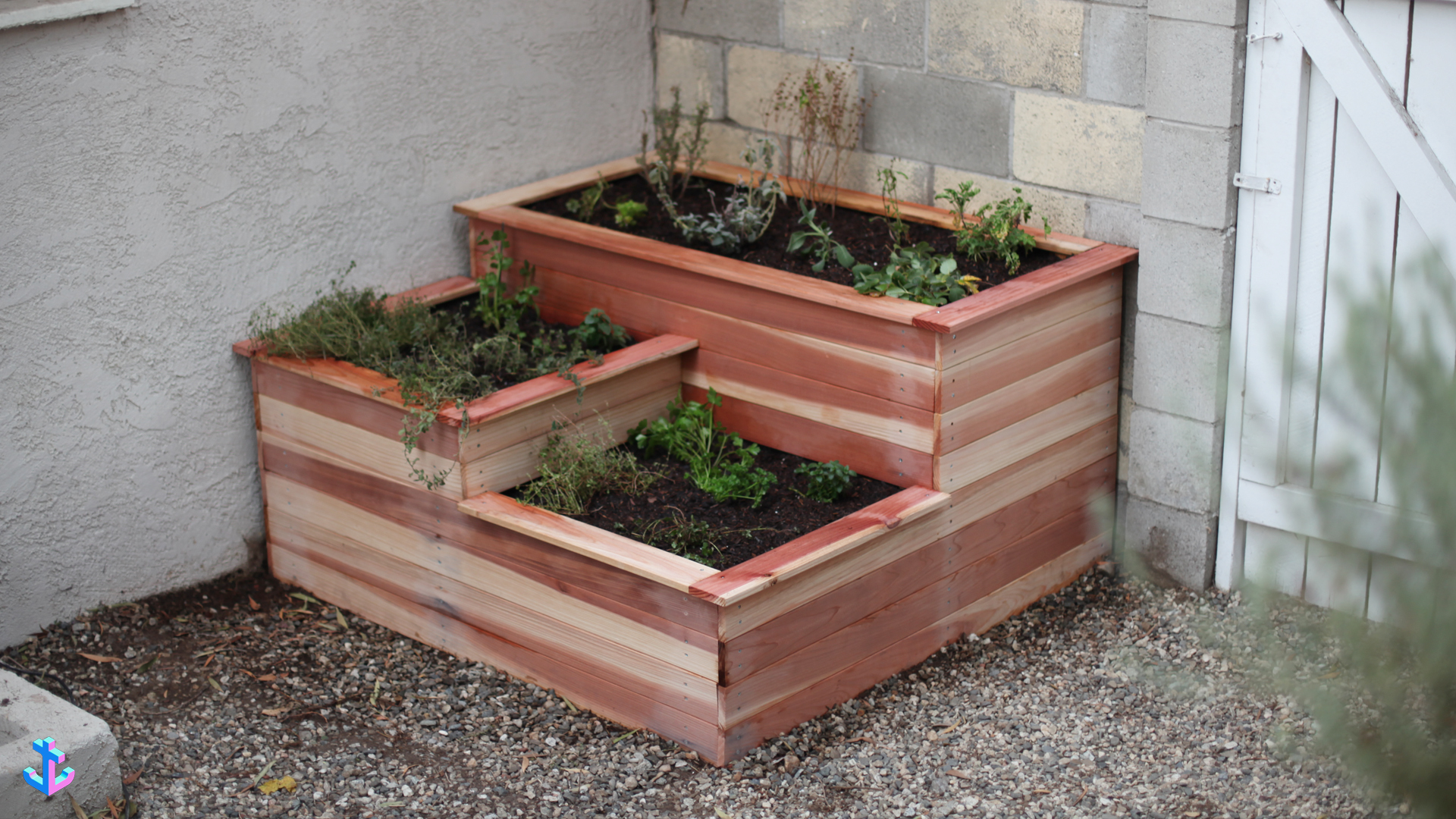

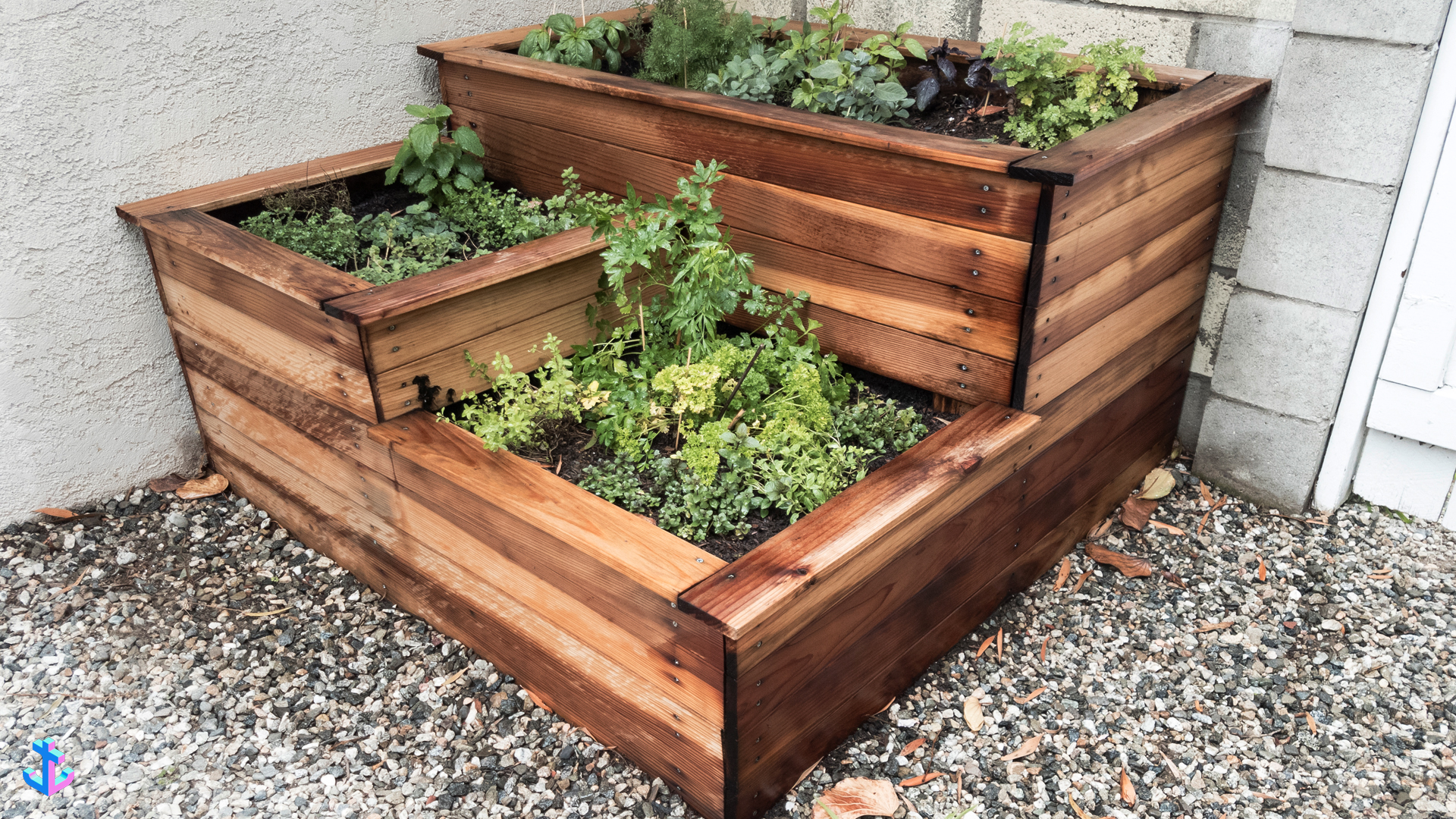

And the the 3-Level Garden box full of herbs.

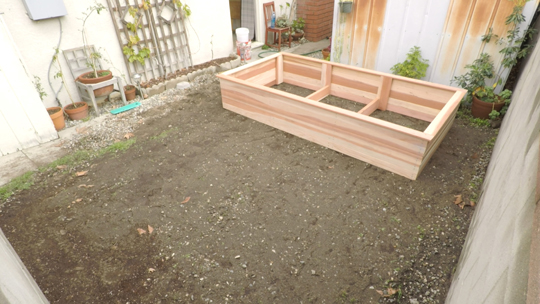

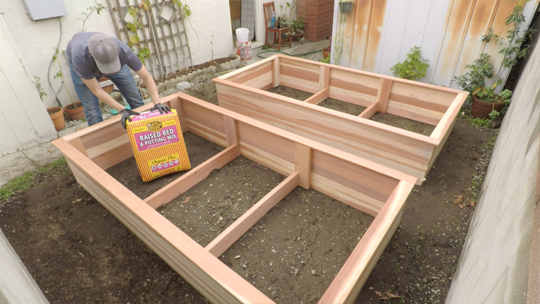

The garden boxes were then placed and filled with a raised bed soil mix.

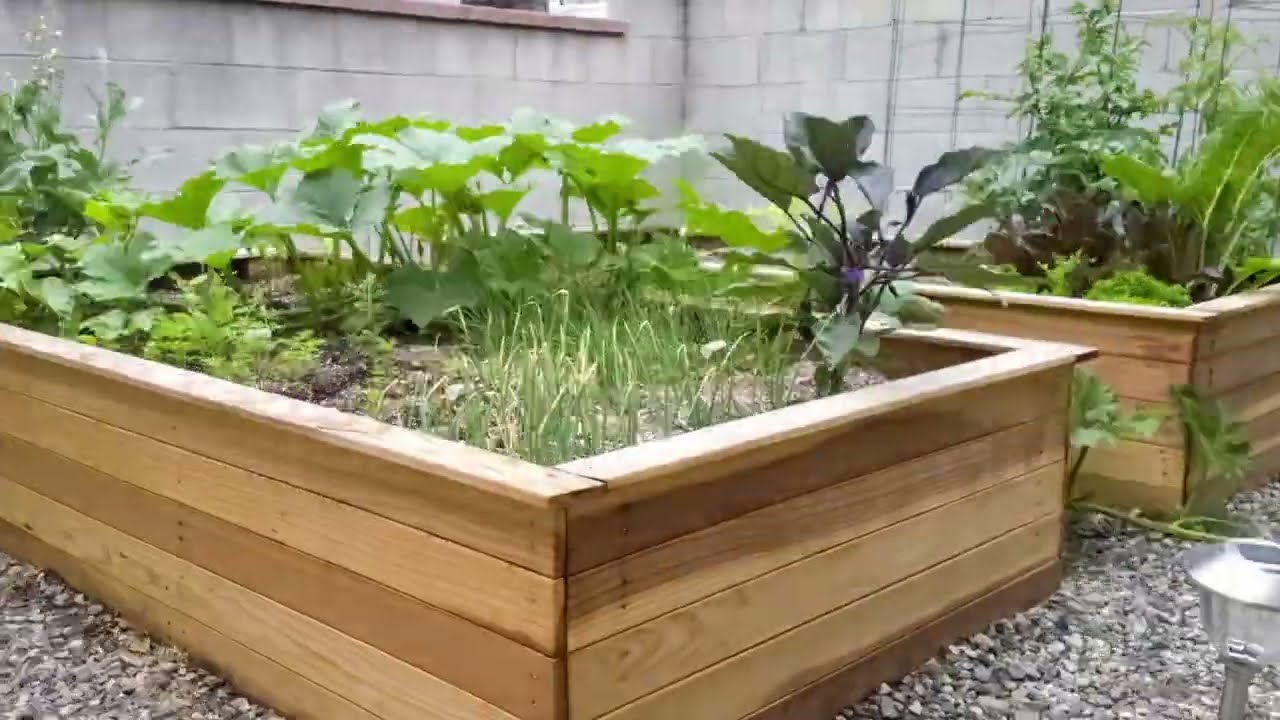

A handheld time-lapse of the first 90 days of the garden beds first season:

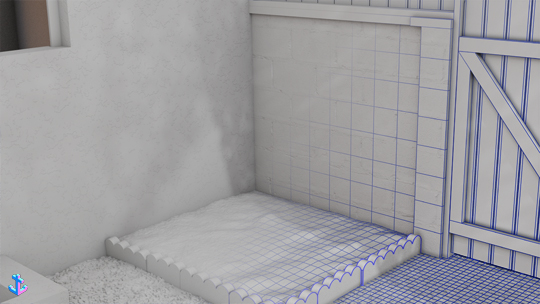

The locations for the boxes were measured by hand and translated into 1-1 scale 3D models.
